    MAXTRAX Universal Flat Rack Mounting Kit

    $129.00 AUD
    Tax included.

    Product Information

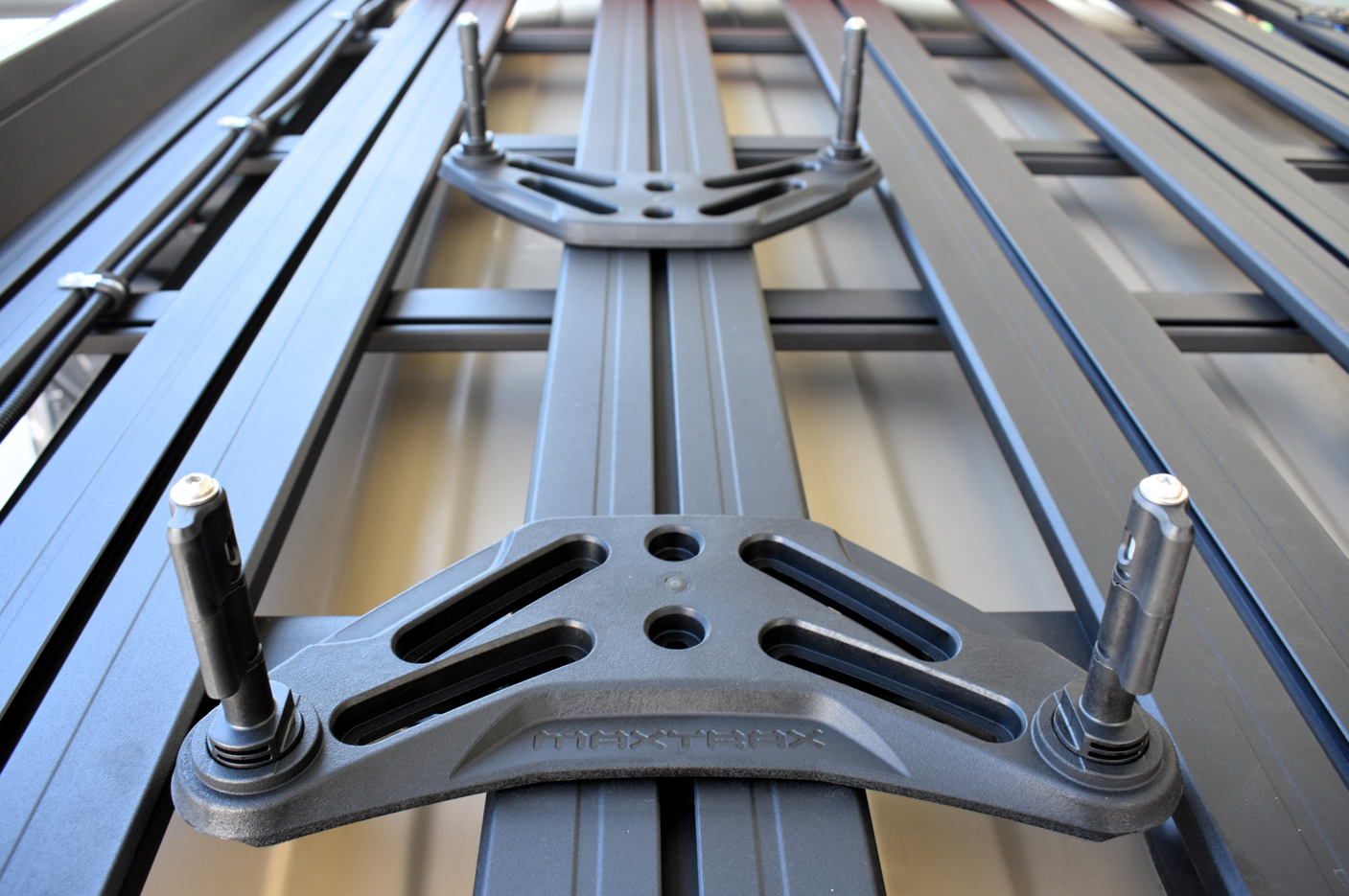

    The MAXTRAX Universal Flat Rack Mounting Kit is designed to mount your MAXTRAX Recovery Boards to your vehicle's roof platform or roof rack crossbars and is commonly used for securing to vehicle canopies and caravans/camper trailers.

    The MAXTRAX Universal Flat Rack Mount can securely attach up to 4 x MAXTRAX MKII recovery boards, 4 x MAXTRAX LITE recovery boards (MK2/LITE Mounting pins), 4 x MAXTRAX XTREME recovery boards (Xtreme Mounting Pins), or a pair of each (Hybrid mounting pins).


    The MAXTRAX Universal Flat Rack Mount provides 180mm of closer adjustment or 180mm of further apart adjustment from the mounting point of the Flat Racks.

    The MAXTRAX Universal Flat Rack Mount Includes 4 x T-Bolts (Suitable for Rola Titan roof platform, roof platforms and roof rack crossbars from most popular Roof Rack Brands), Spring Washers, Flat Washers & Nyloc Nuts, 4 x Steel Bolts with 4 x Channel Nuts.

    NOTE: The Frontrunner Slimline & Slimsport roof platform will require M8 bolts. Other roof rack brands may require additional mounting hardware (available from market leading roof rack retailers) to support fitment to the ARB Base Rack. The new Rhino Rack P6 range will require the RR Zwifloc fastening hardware.

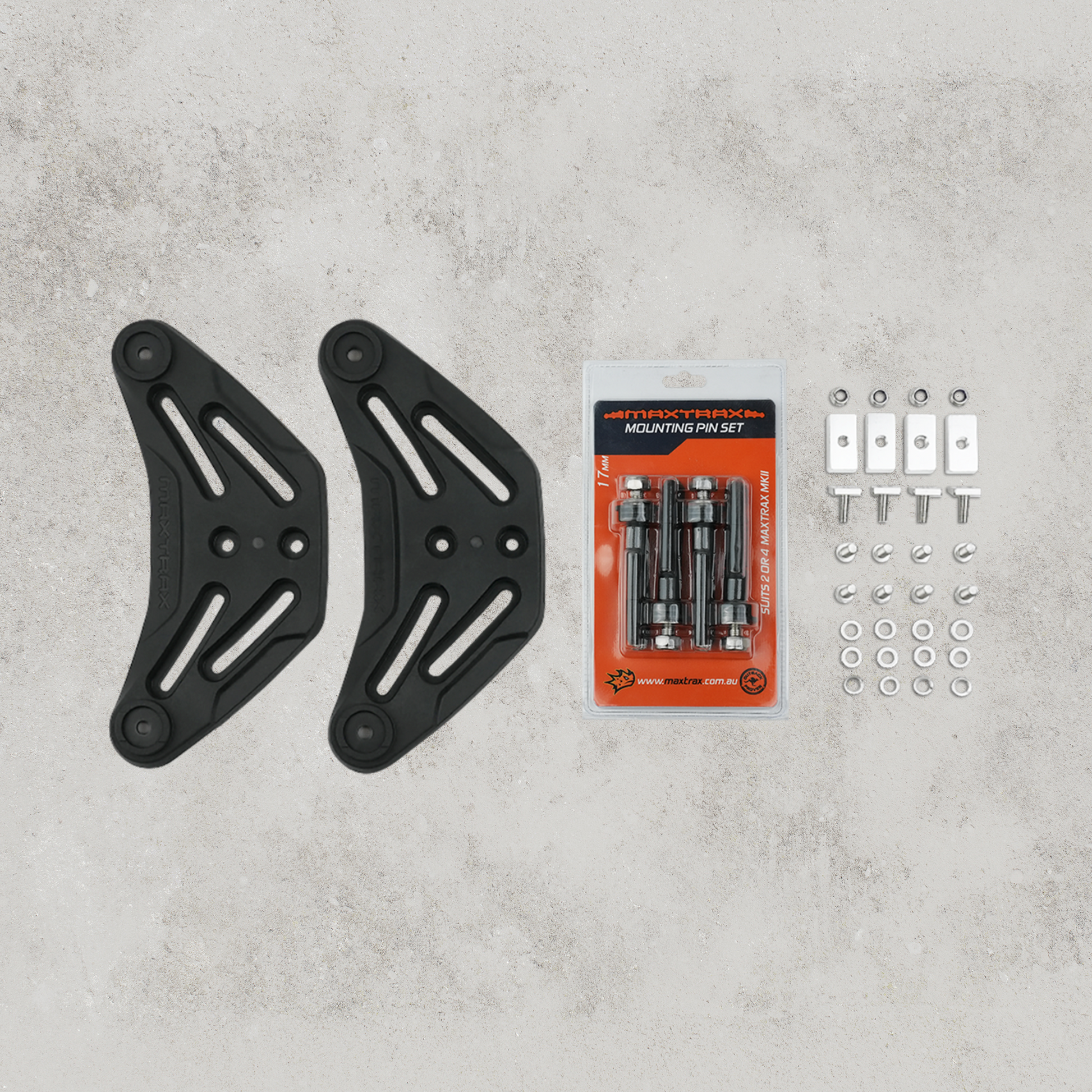

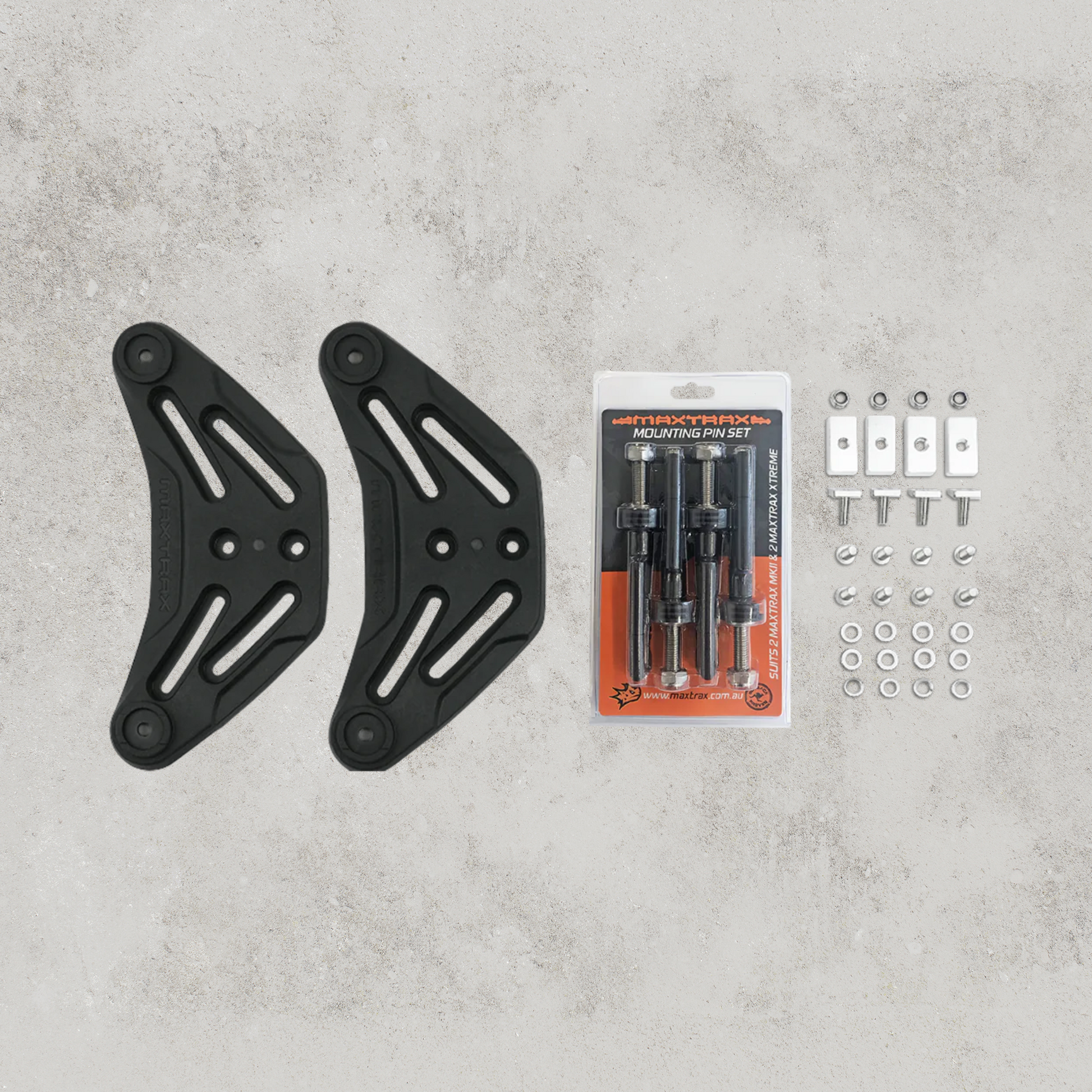

    The package includes the following components:

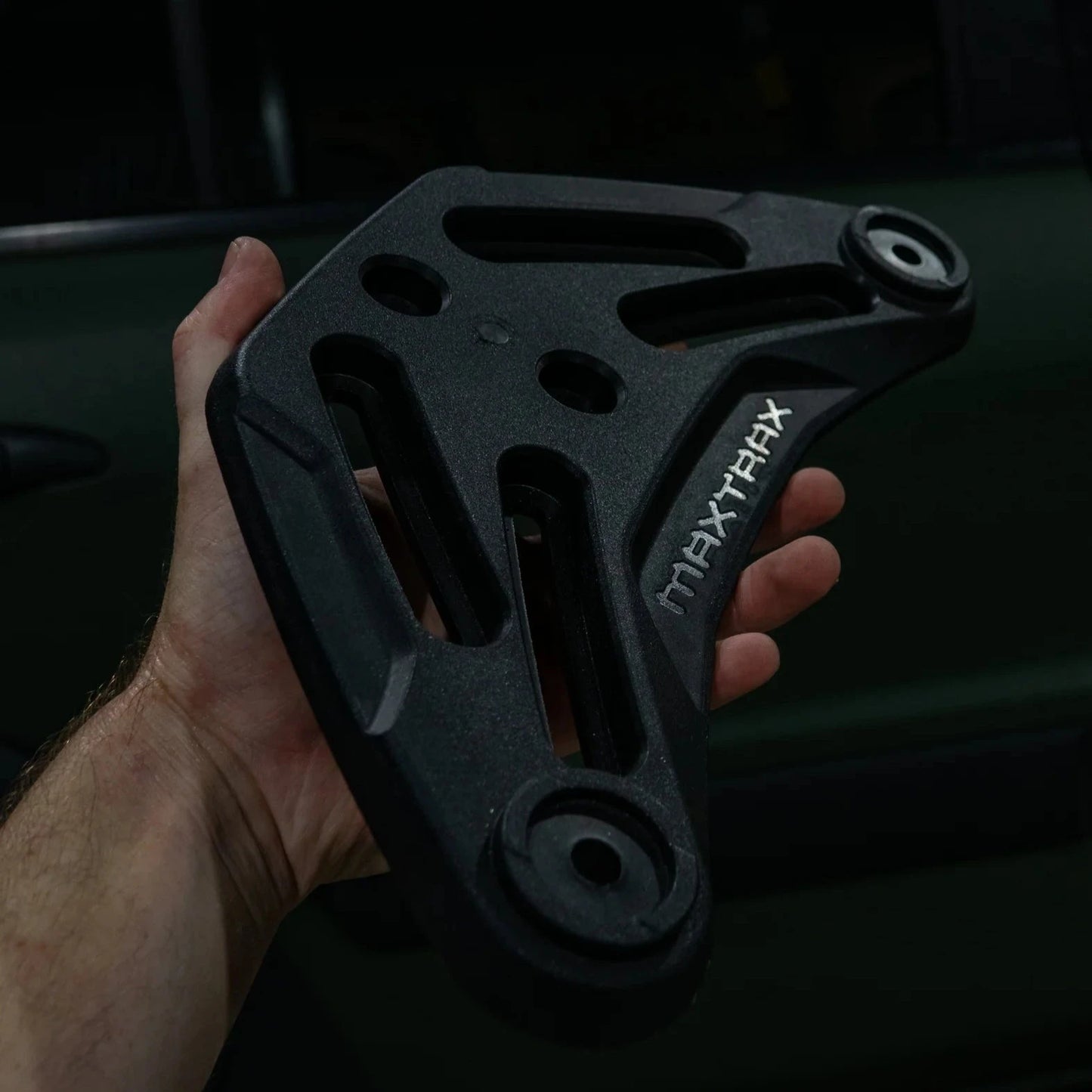

    • 2 x  Glass filled Nylon Flat brackets featuring MAXTRAX logo
    • 4 x Channel Nuts, Stainless Steel flat washers, spring washers and Bolts; (Channel Nuts: 40mm x 20mm x 10mm)
    • 1 x Set MAXTRAX Mounting Pins 17mm (Mk2 /LITE - MTXMPS17, Hybrid - MTXMPSX17, XTREME - MTXXMPS17)
    • 4 x Stainless Steel M8 T-Bolts, flat washers and Nyloc nuts; (T-Bolt: 35mm x 20mm x 4.5mm, M8 x 20mm)
    • 4 x Stainless Steel M8 Bolts
    Warranty: 12 month warranty against faulty materials and workmanship.
